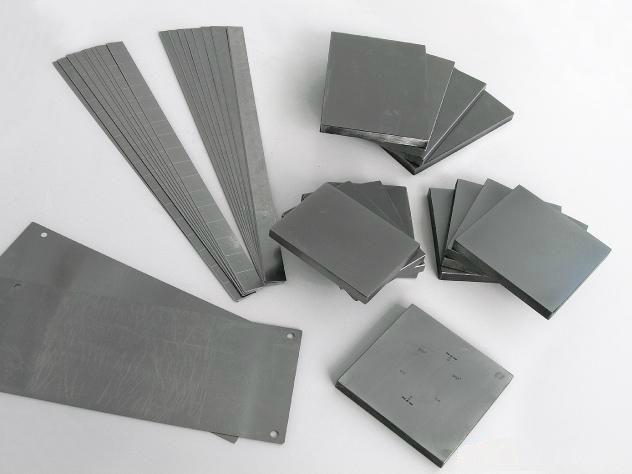

Usage: Steel plate for pad printer etches logo in plate, then pad transfer ink with logo from plate to article.
Specification:
HC-plate Thick steel plate for open ink tray pad printer
1) Standard size: 3*4 inch (75*100mm)
3*6 inch (75*150mm)
4*4 inch (100*100mm)
4*6 inch (100*150mm)
4*8 inch (100*200mm)
4*10 inch (100*250mm)
6*6 inch (150*150mm)
6*8 inch (150*200mm)
6*12 inch (150mm*300)
8*8 inch (200*200mm)
8*12 inch (200*300mm)
2) Thickness：0.39 inch, 0.47 inch, 0.59 inch (10mm,12mm,15mm)
3) Material：Svp9 Gcr15 Cr12Mov
4) Print time: 600000
HC-T-Plate Thin steel plate for ink cup pad printer：
1) Standard size： 3*6 inch (75*150mm)
4*8 inch (100*200mm)
4*10 inch (100*250mm)
4*12 inch (100*300mm)
6*8 inch (150*200mm)
6*10 inch (150*250mm)
6*12 inch (150mm*300)
8*8 inch (200*200mm)
8*12 inch (200*300mm)
2) Thin plate thickness: 0.254/0.305/0.508mm
3) Smooth finish: y8
4) Tensile strength: hrc53
5) Rigidity: HRC52
Features:
1) Outstanding scratch resistant, resistant to rust.
2) Thick steel plate with single side and double side.
