Usage: Automatic bottle cap hot stamping machine for bottle cap's Top Surface , speed can reach 4500pcs／hr.
Specification:

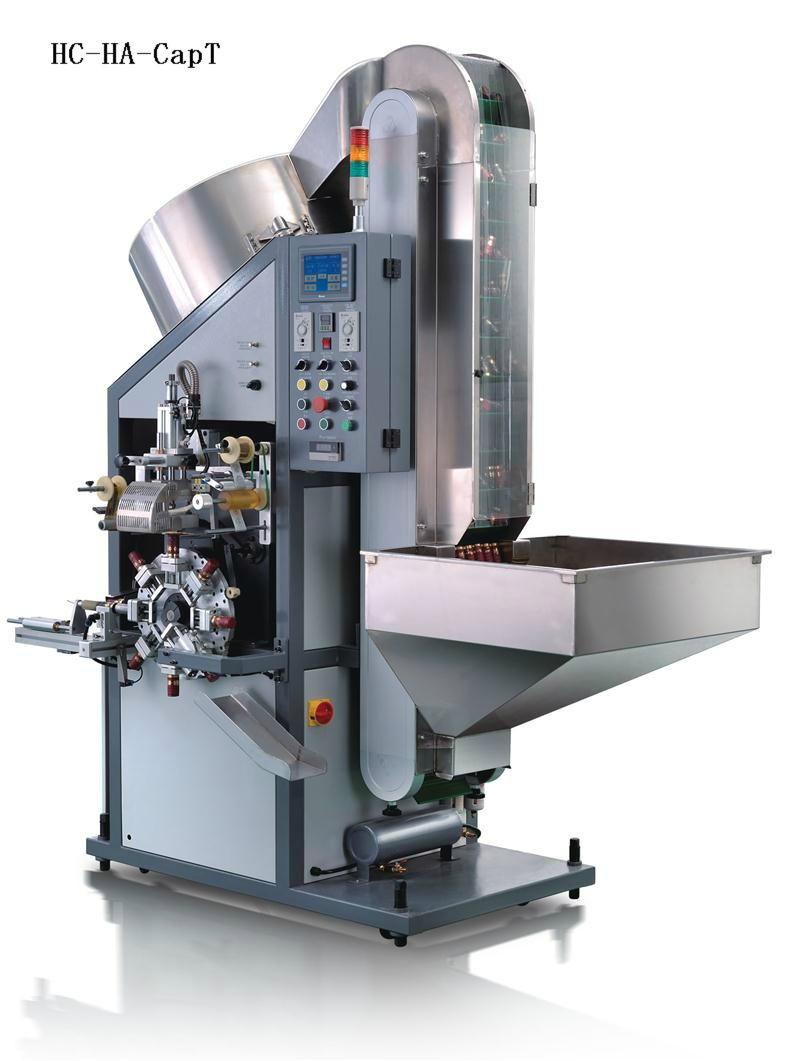

HC-HA-CapT Automatic bottle cap hot stamp machine
1: Total consume Wattage: 2.2KW;
2. Stamping temperature Rnange:20-300°C;
3. Compress air Pressure:0.6MPA;
4. Products Diameter:DIA:15-34MM L:25-60MM
5. Max stamping Speed: 4500pcs/hr
6. Outer dimension: 210*140*230CM
7. Net weight: 800KG
Features:
1. Silicon Rolling foil stamping system for assuring perfect stamping quality.
2: Fully automatic loading and feeding system for mostly degree of saving labor cost and most efficiency.
3: PLC control system, with no caps no print, counting, code setting, maintenance, temperature control, automatic alarming system etc.
4: International Famous pneumatic parts included Japan SMC cylinder, valves, Germany OMERON sensors etc.
5: Japan and Taiwan famous brand DEFOILER motor, STEPPER MOTOR, vacuum pump motor etc.6: SCHNEIDER OR PANOSONIC key electrical components
7. Safe protection device installed.
8: Free technical and operation Training available.
Power Supply: 220V/50HZ
Standard Certificate: ISO9001-2000
Country of Origin: Guangdong, China
Payment Terms: T.T, PayPal, Western Union or L/C
Lead time: Within 5 days when get buyer’s payment or deposit
Shippment: By sea
Guaranty: one year
Packing: by wooden cases
Packing size: 2150X1450X2350mm
Packing volume: 7.3CBM
Gross weight: 900KG
Machine Fittings for free:
1) 1 set Tool box;
2) Operation instruction in English
Please click here to see the video http://youtu.be/hz7ZLmGIqRc
